Name: Bensinrikið spæl við honda motori, flytbar - 1000/2000 Kg
SKU: 4336
Availability: BackOrder

Bensinrikið spæl.

!!!IKKI til at lyfta við!!!

12 m./min.

1000/2000 kg.

Polyester slinga.

Veirur: 12 m. (6 m)

Motor: Honda 4-takts GXH50 – 1,6 kW.

Vekt: 16 kg.

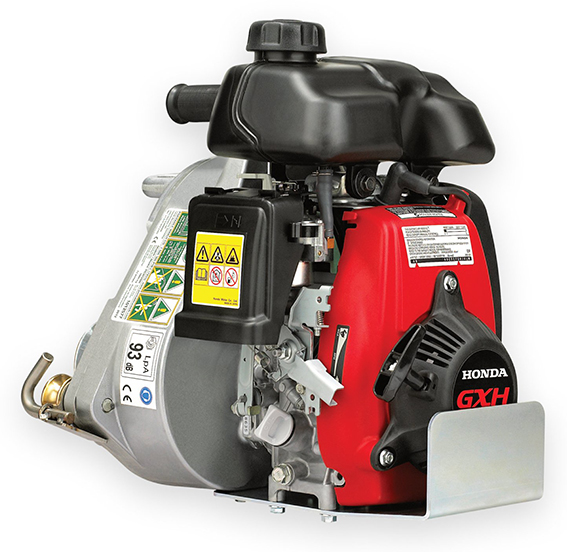

PCW5000
Series	Pro
Designed in	2003
Motor/Engine	Honda GXH50 4-stroke Air-cooled 1.6 kW – 2.1 HP @ 7,000 tr/min
Powered by	Unleaded gasoline, 86 octane or higher
Drive/Clutch	Direct drive (no clutch)
Rope Retention System	No
Drum turns when motor/engine is idling	Yes
Pulling Capacity
Standard drum (single line / double line)	Ø 2-1/4” (57 mm): 2,200 lb / 4,400 lb
Optional drum (single line / double line)	Ø 3-3/8” (85 mm): 1,600 lb / 3,200 lb
Lifting Capacity
Standard drum (single line / double line)	Not designed for lifting – See INDUSTRIAL Serieswinches
Optional drum (single line / double line)	—
Speed
Standard drum	Ø 2-1/4” (57 mm): 40’/min
Optional drum	Ø 3-3/8” (85 mm): 60’/min
Weight	35 lb
Dimensions (overall)	14-1/4” x 14-5/8” x 14-1/4”
Gearbox	Aluminium alloy. Heat treated 3-stage spur gears. Mounted on ball bearings. Oil bath lubrication.
Gear ratio	110:1
Brake	Anti-reversing roller clutch bearing
Rope (not included)	Low stretch double braided polyester
Length	Unlimited
Minimum Breaking Strength (MBS)	4,850 lb
Minimum diameter	Ø 3/8” (10 mm)
Maximum diameter	Ø 1/2” (13 mm)
Recommended diameter	Ø 1/2” (12 mm)
Included	Polyester sling – 2-1/2” x 6-1/2′
Warranty	Once purchased, register your winch online and get 1 additional year of warranty for FREE!
Private use	5 years
Commercial use	1 year
Motor/Engine	Honda International Warranty
Certification(s)	CE
