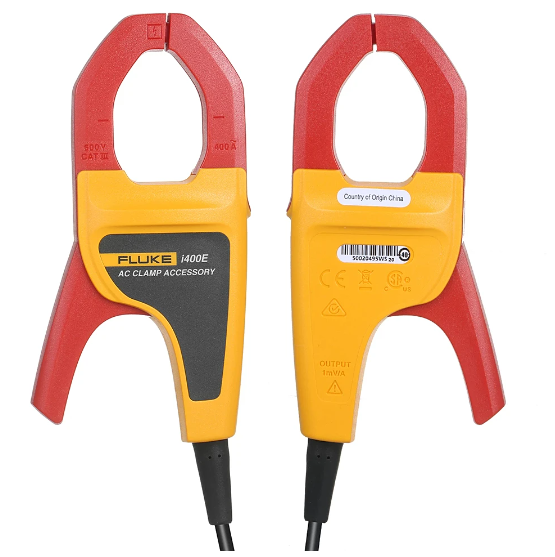

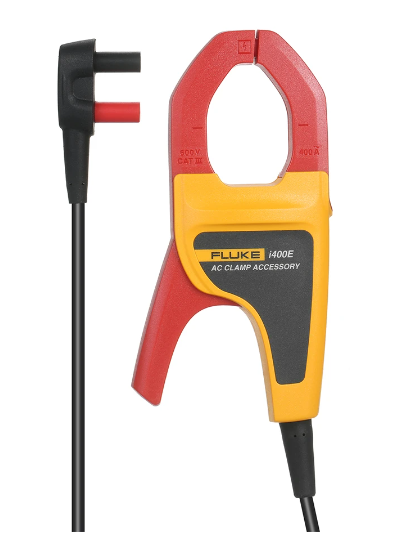

Name: FLUKE i400E streym tong 400A
SKU: 7618
Price: 3299.00 DKK
Availability: InStock

FLUKE streym tong

Sera smart tong um eina skal máta streym, kan brúkast við multimetur.

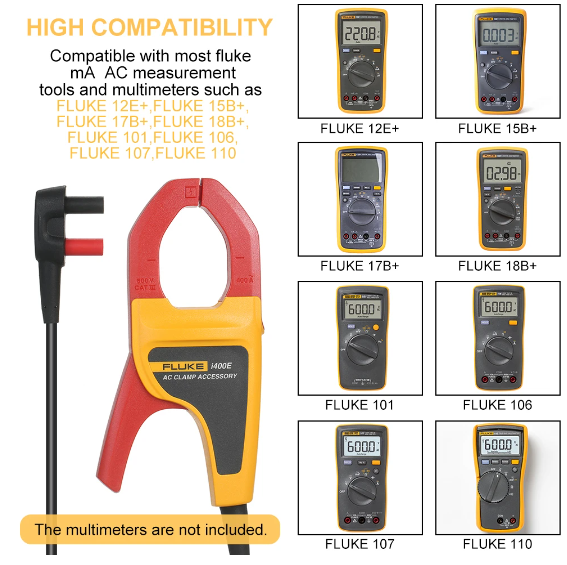

Passar til flestu Fluke og onnur multimetur

Electrical specifications
AC current range	1 A to 400 A
Output signal 1	mV/A ac
Accuracy	2.0 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)
Typical bandwith	5 Hz to 20 kHz
Working voltage	600 V ac rms, in compliance with IEC 61010-1 and IEC 61010-2-030
Load impedance	1 A to 400 A
Maximum non-destructive current	600 A
Jaw inner diameter	30 mm
Maximum wire size	600 MCM
Standard plugs	19.04 mm dual banana plugs

Safety specifications
Category rating	IEC 61010-1 and IEC 61010-2-030/IEC 61010-2-031 and IEC 61010-2-032: 600 V CAT III Pollution Degree 2
Electromagnetic environment	IEC 61326-1: Portable

General Specifications
Output cable length	1 m
Operating temperature	-10 °C to +50 °C
Storage temperature	– 30 ºC to +60 ºC
Relative humidity	≤90 % at 10 °C to 530 °C; ≤75 % at 30 °C to 540 °C; ≤45 % at 40 °C to 50 °C
IP rating	IEC 60529: IP30 when jaw closed
Temperature coefficients	Add 0.1 x specified accuracy for each °C above 28°C or below 18 °C.
Operating altitude	2,000 meters
Storage altitude	12,000 meters
Vibration requirements	MIL-PRF-28800F, Class 2
Drop test requirements	-10 °C, 1m, 6 sides, oak wood
Jaw impact test requirements	Follow EN/IEC 61010-2-032:2012
EMI, RFI, EMC	IEC/EN 61326-1
Dimensions (hxwxd)	146 mm x 62 mm x 34 mm
Weight	150 g
