HM machinery metal dreyibonkur LT 250/550 (Scantool)

Proff Metal dreygibonkur frá HM machinery í Danmark

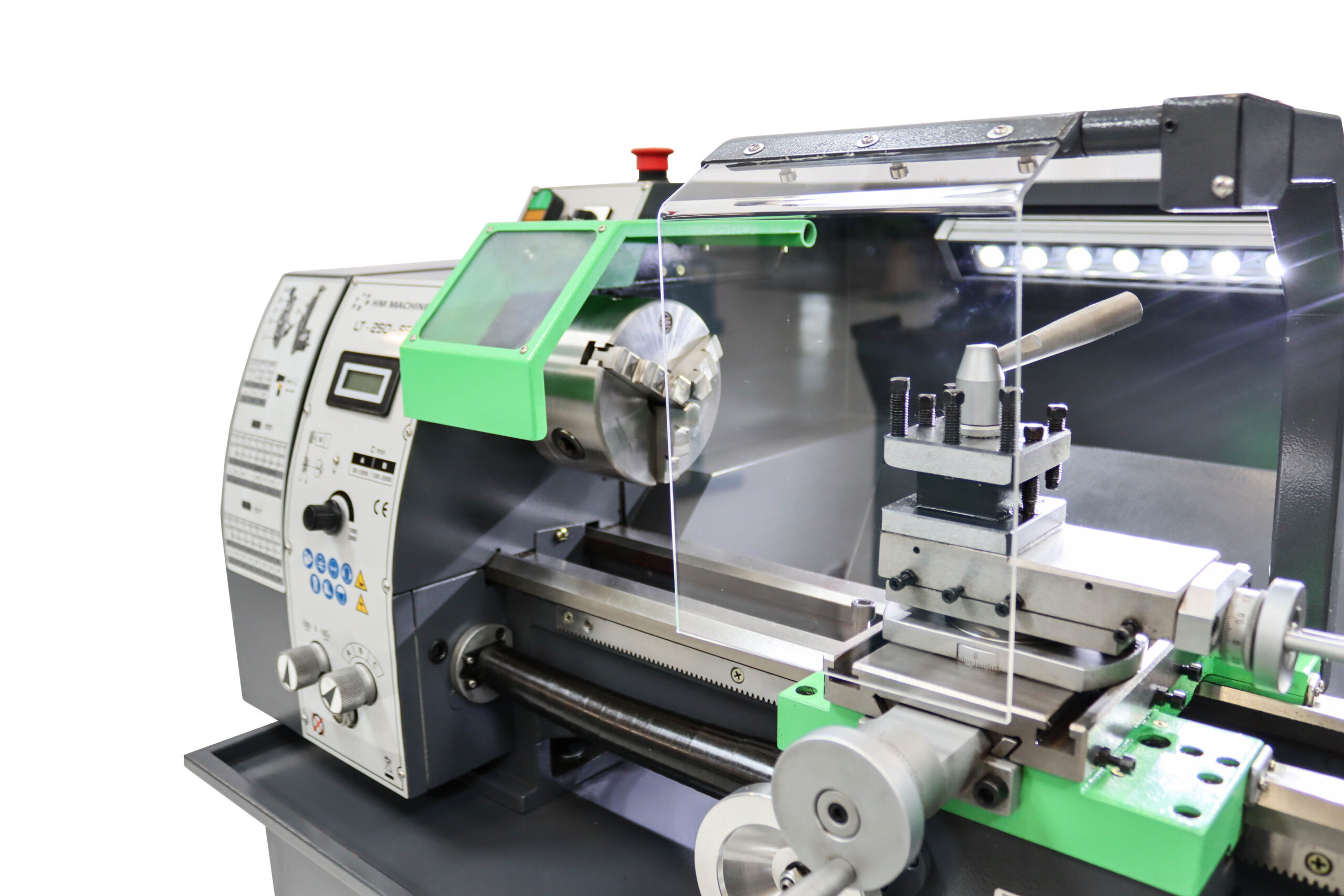

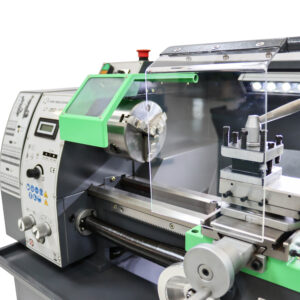

The LT 250/550 has a Ø26mm spindle bore, a high precision main spindle with a high-quality FUERDA center chuck + LED worklights.

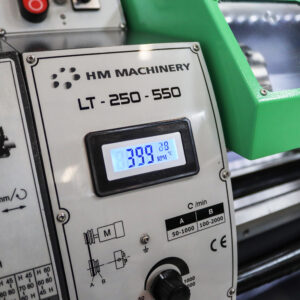

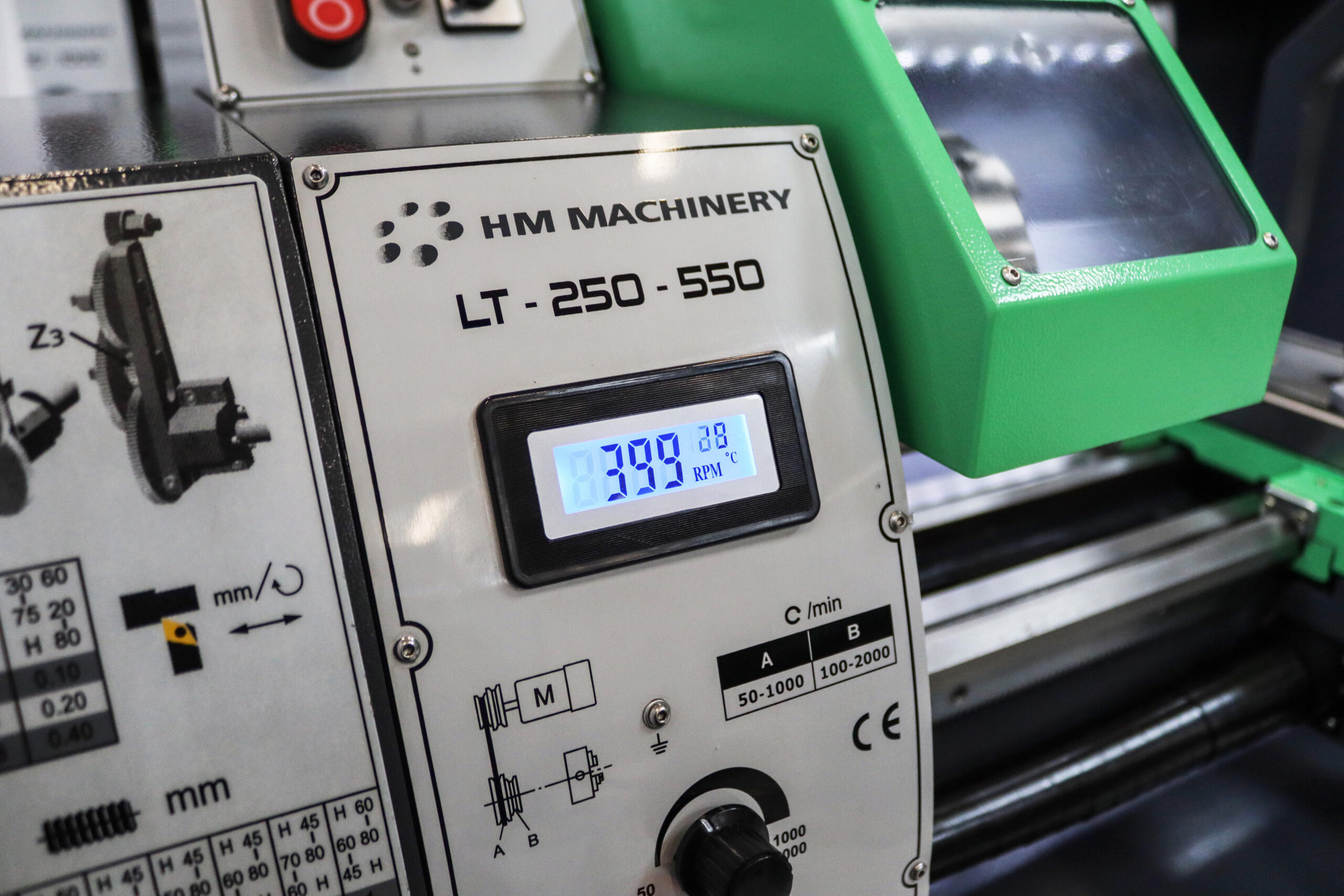

It offers thread cutting, digital readout, variable speed (50-2000 rpm), and operates on 1x230v power.

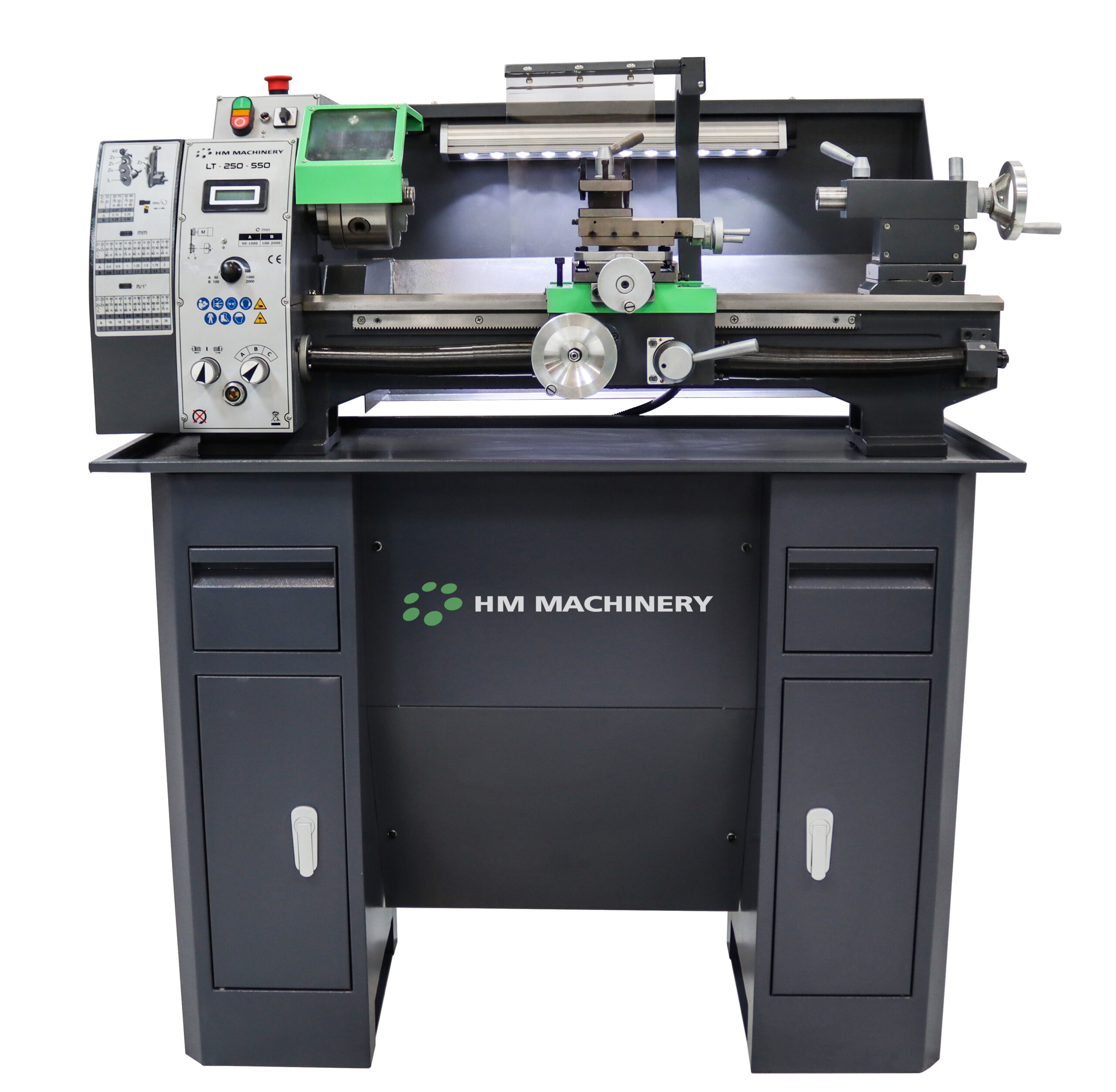

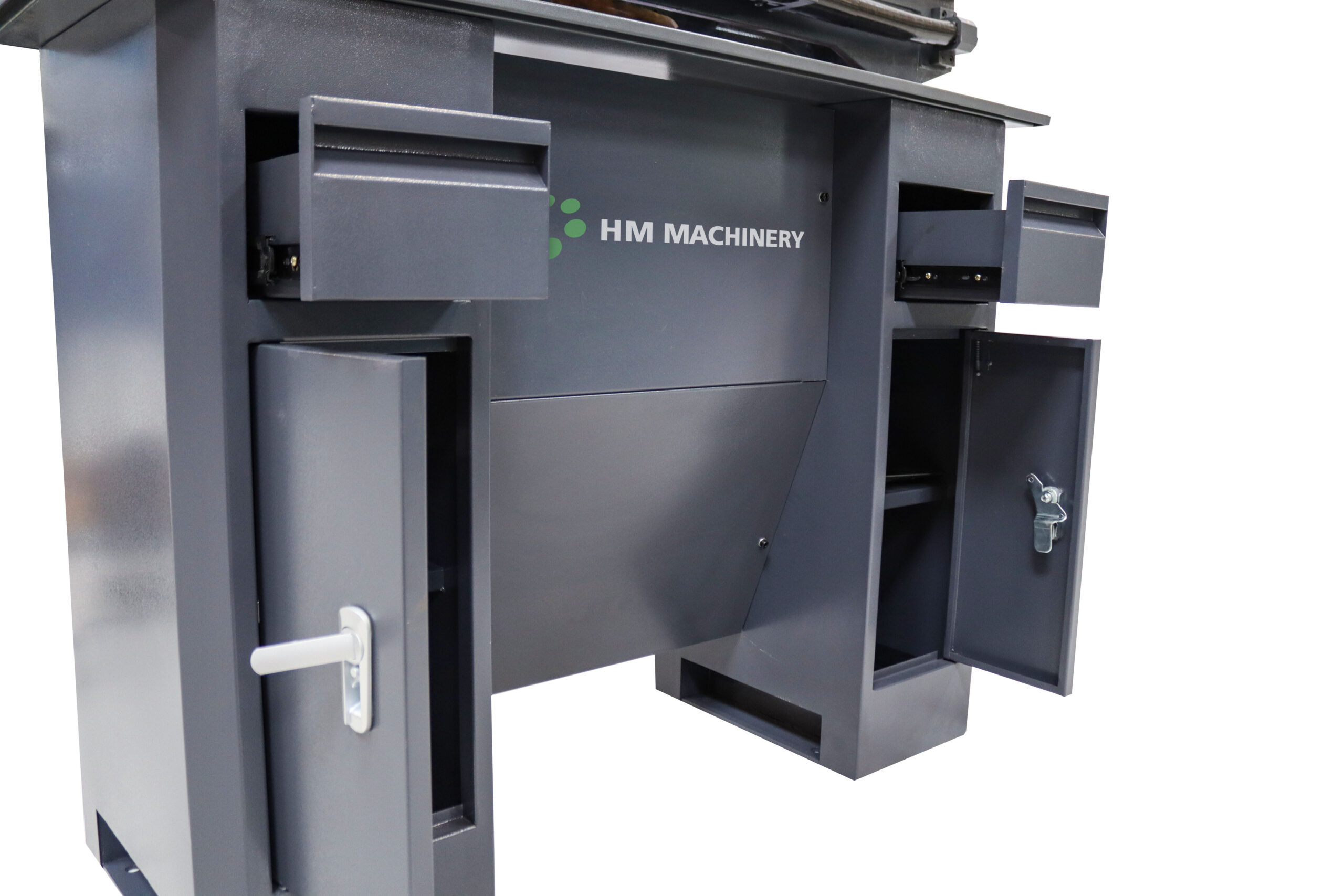

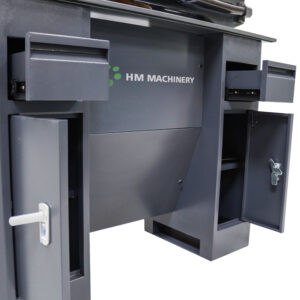

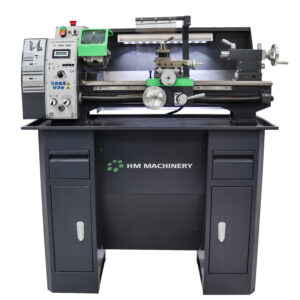

Additionally, it is mounted on a base with 2 drawer and 2 cabinets. It has dimensions of Ø250mm/550mm for optimal project space.

Standard accessories:

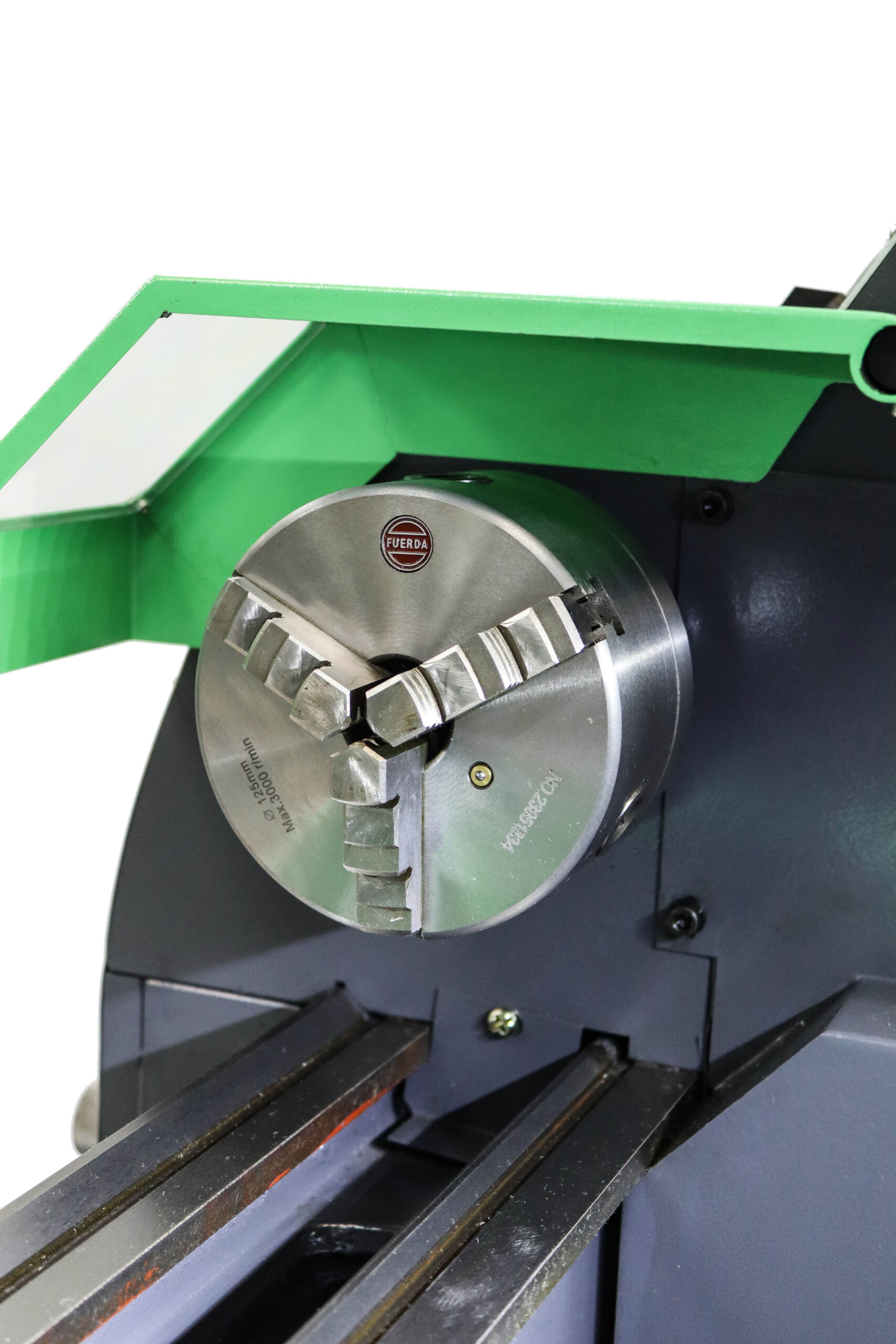

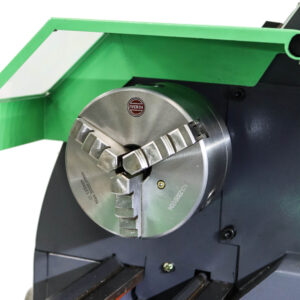

• FUERDA self-centering 3-jaw chuck

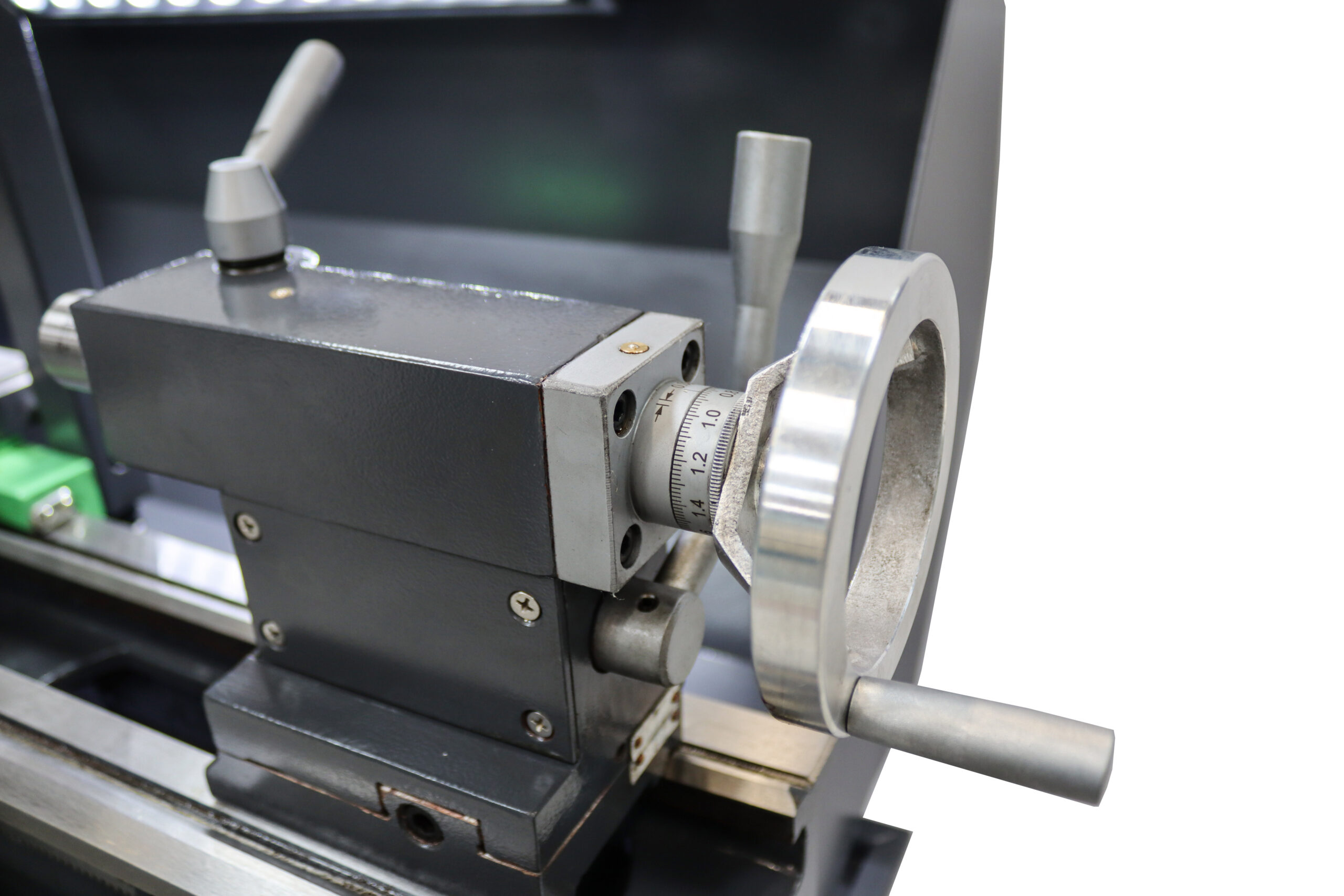

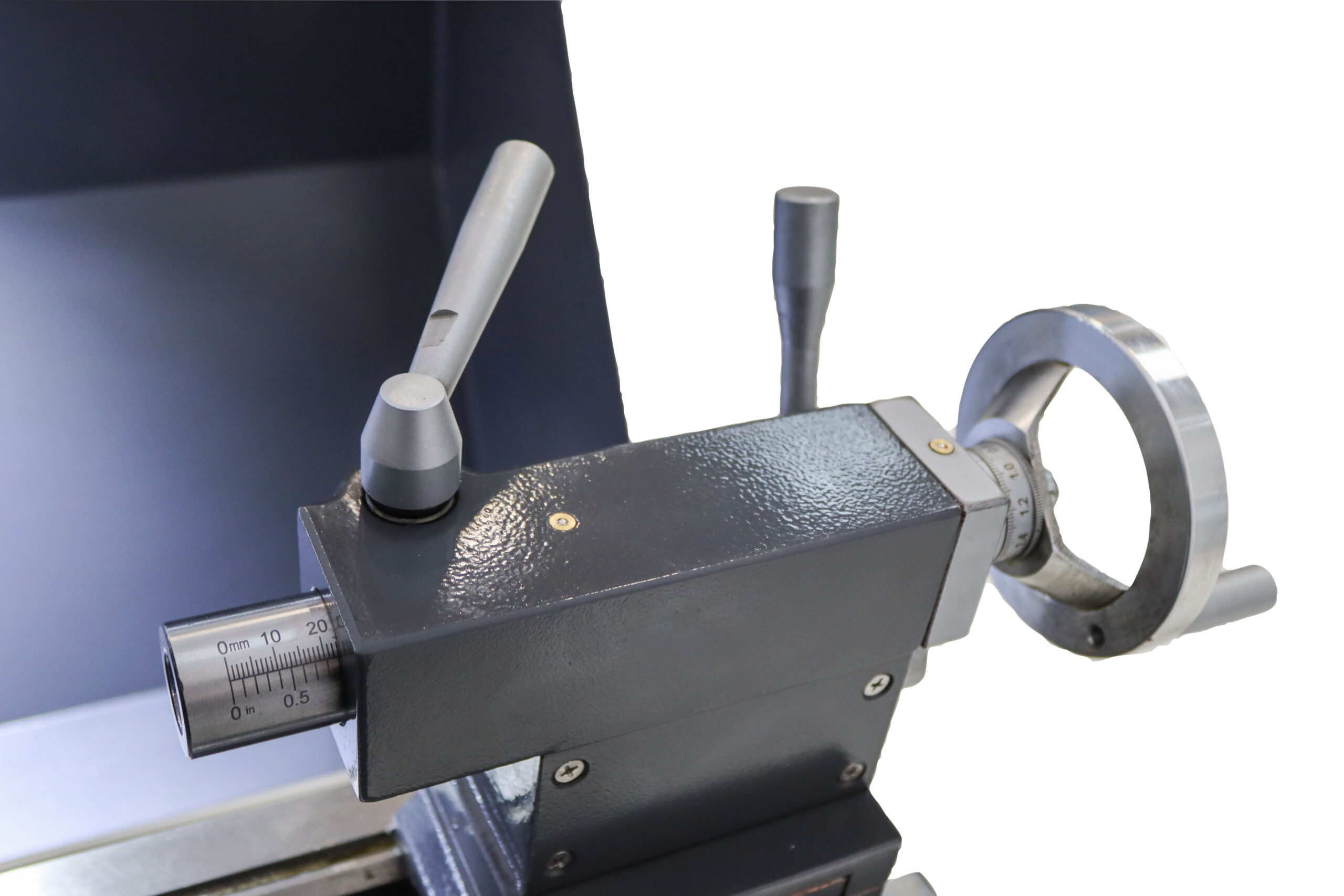

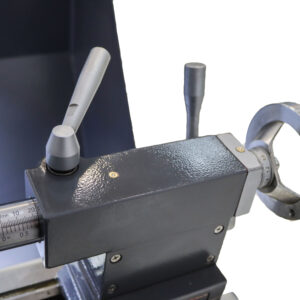

• MT2 tailstock

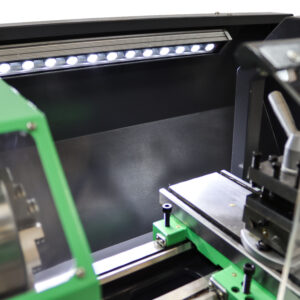

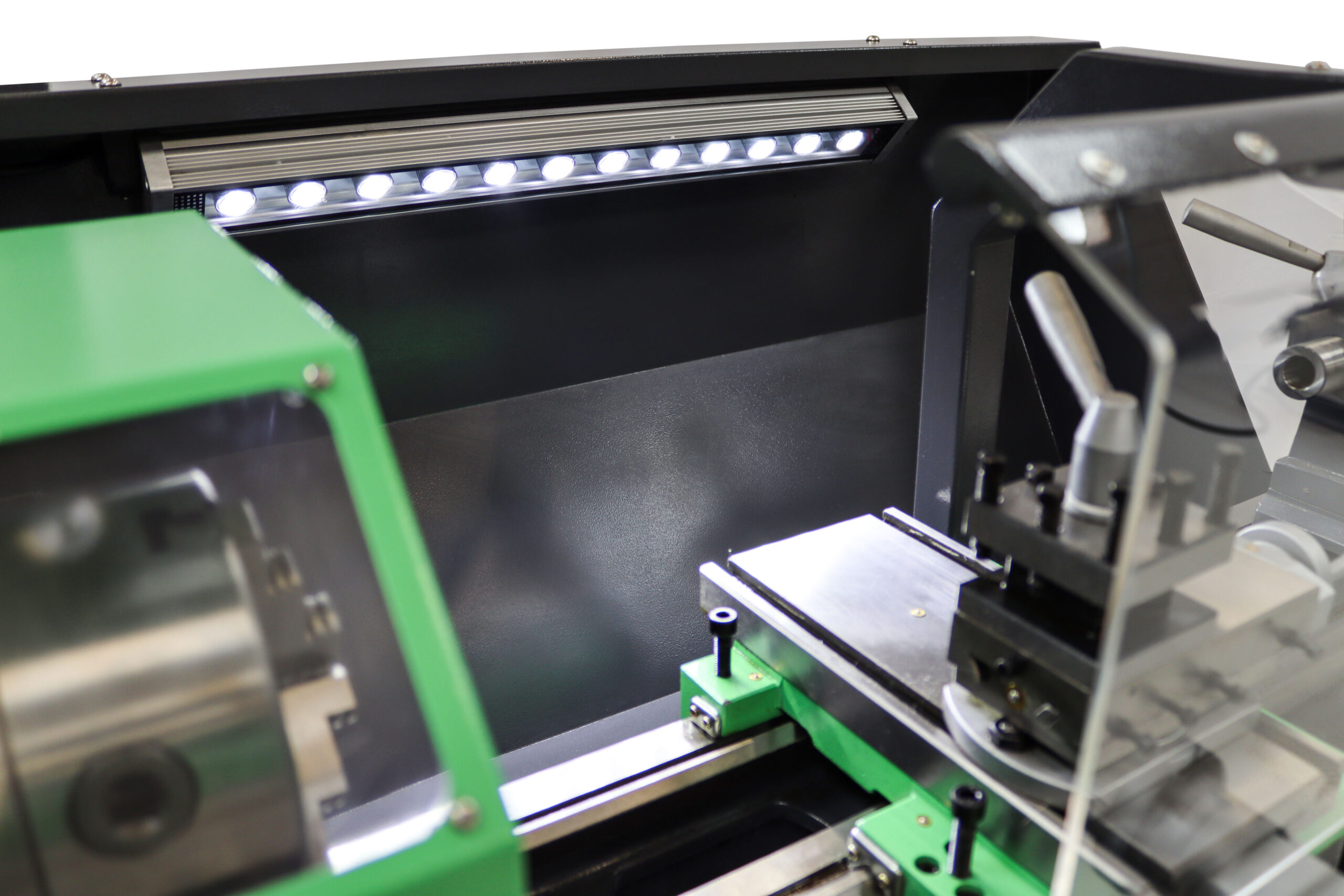

• Adjustable LED worklights
• Eye shield with Microswitch
• Storage options with rubber mats

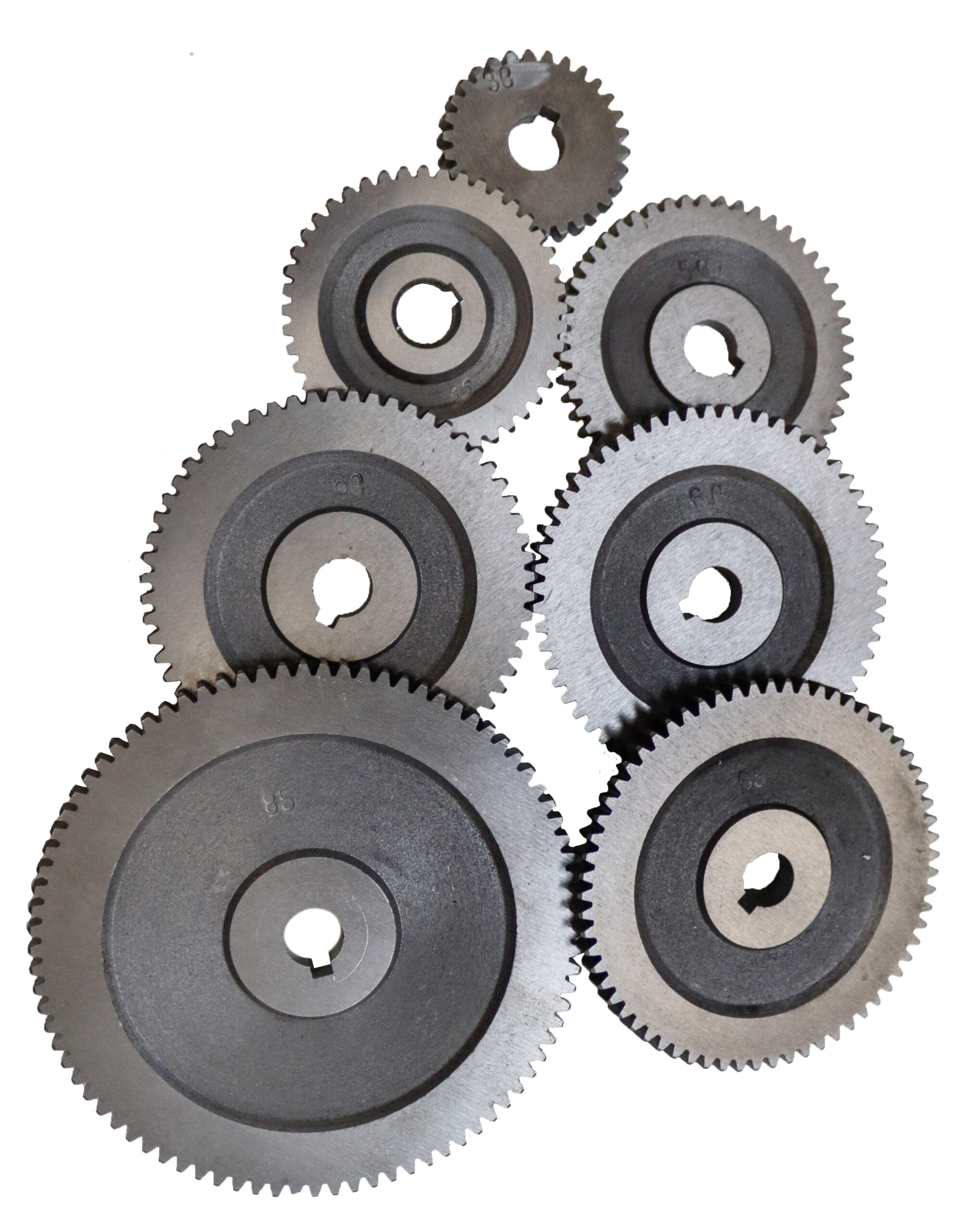

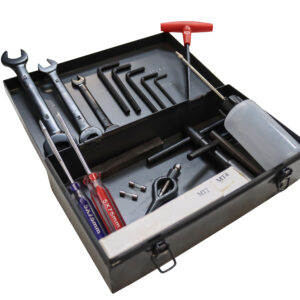

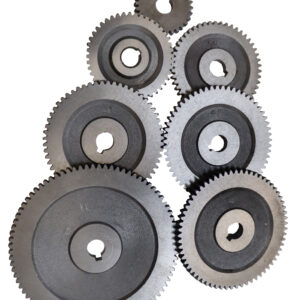

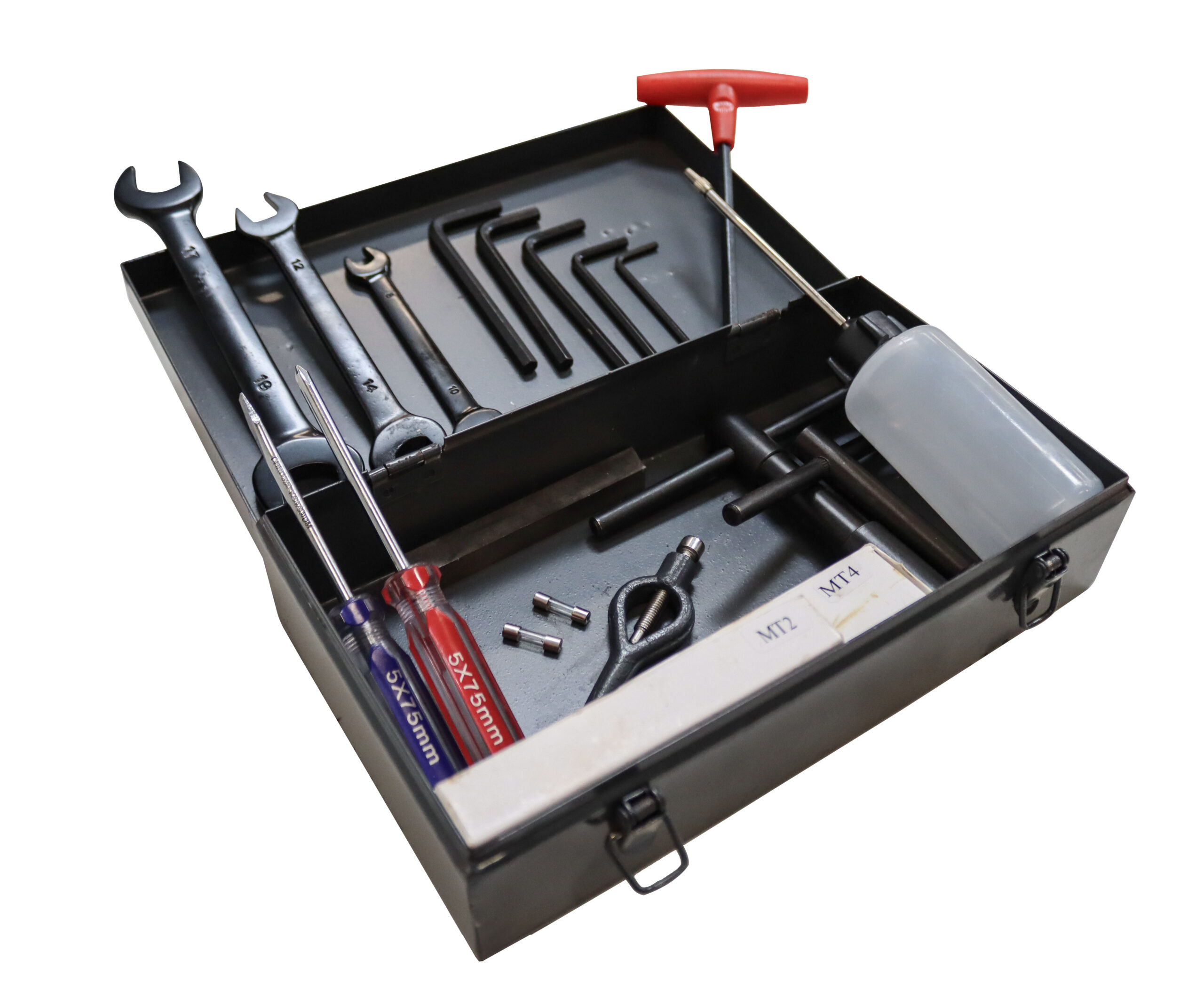

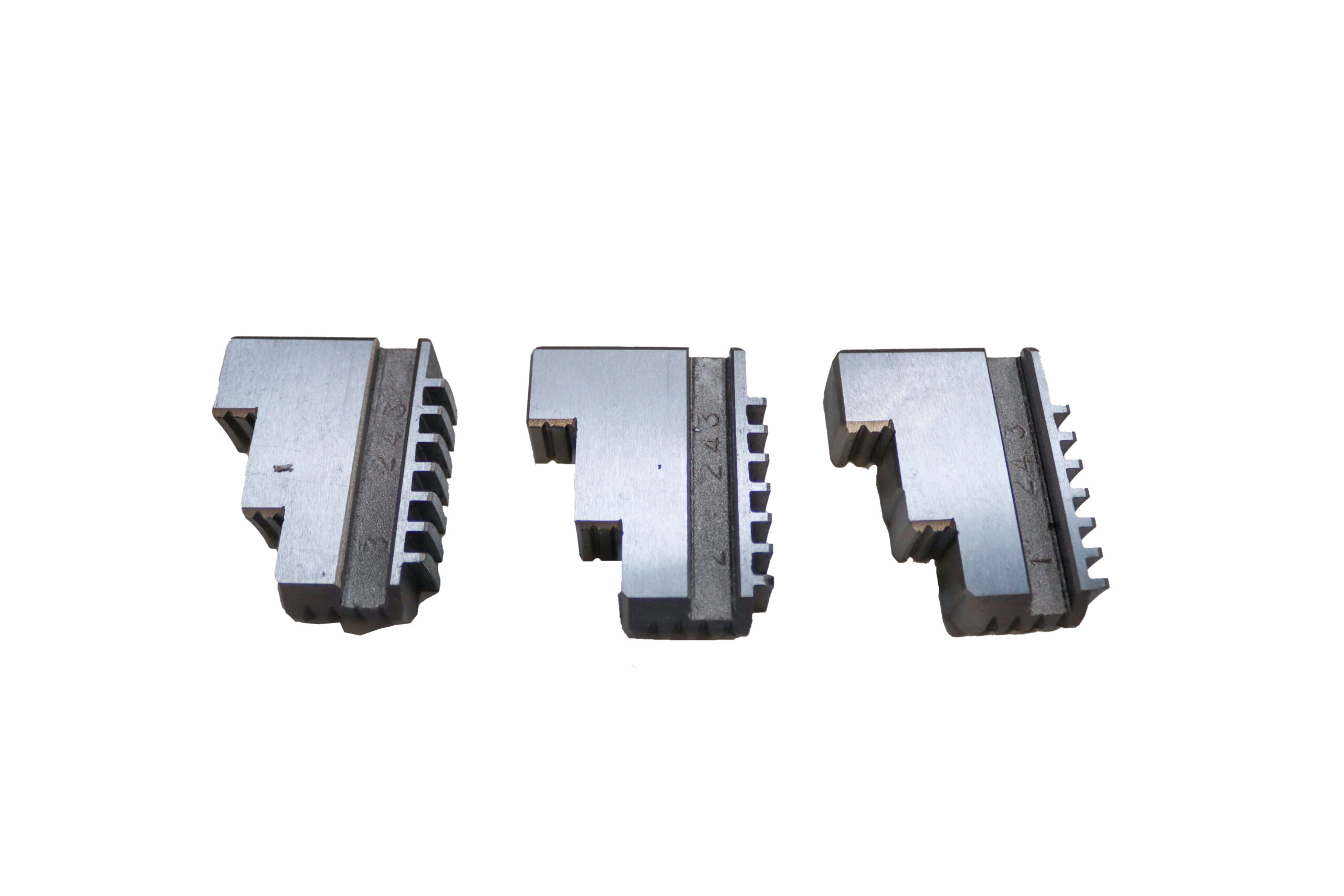

• Toolbox with operation tools, extra jaws and gears

• Product Specifications

  Swing over bed	250mm
  Swing over cross slide	150mm
  Tail diameter	Ø30mm
  Tail height	125mm
  Distance between centers	550mm
  Width of bed	135mm
  Spindlebore (mm)	26
  Taper of spindlenose	MK-4
  Number of spindle speeds	Variable
  Range of spindle speed	50-2500rpm
  Metric threads	0.2-4.0mm
  Imperial threads	8~56 T.P.I.
  Range of longitudinal leed	0.07~0.40mm
  Type of toolholder	4-way

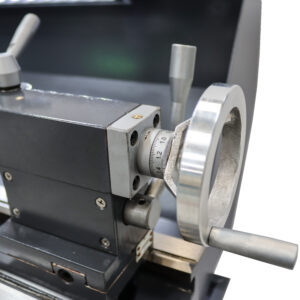

  Max. travel of compound slide	70mm
  Max. travel of cross slide	115mm
  Max. travel of main slide	450mm
  Spindle travel	80mm
  Taper in Tailstock Spindle	MK-2
  Voltage	1x230V
  Main motor	1100 watt
  Length (mm)	1200
  Width (mm)	560mm
  Height (mm)	580mm
  Weight	130kg
