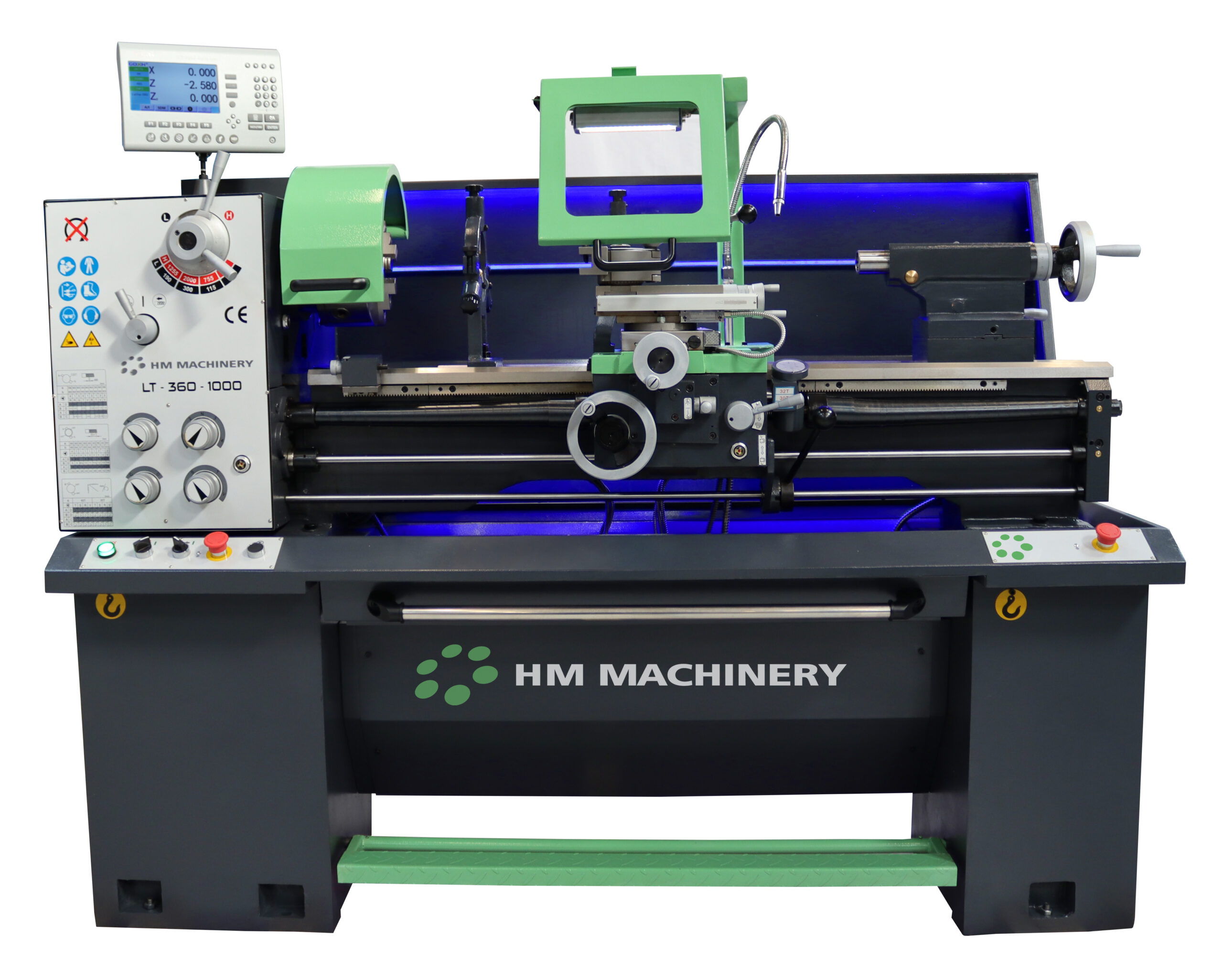

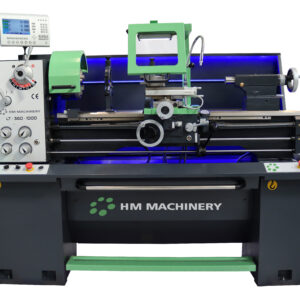

HM machinery metal dreyibonkur LT 360/1000(Scantool)

Proff Metal dreygibonkur frá HM machinery í Danmark

The LT 360/1000 features a Ø52mm spindle bore and operates within a versatile speed range of 70-2000 rpm across 8 steps. Equipped with a 3-axis LCD monitor GDXH i200 featuring digital readout, it ensures precision and efficiency in your operations. Its heavy cast iron base provides stability, while the quick change tool post facilitates seamless transitions between tasks.

With additional features like a spindle brake and a high-quality FUERDA center chuck, this lathe delivers superior performance. Operating on 3x400v power, it offers a substantial capacity of Ø360mm/1000mm to accommodate diverse machining needs.

Full package of accessories is standard:

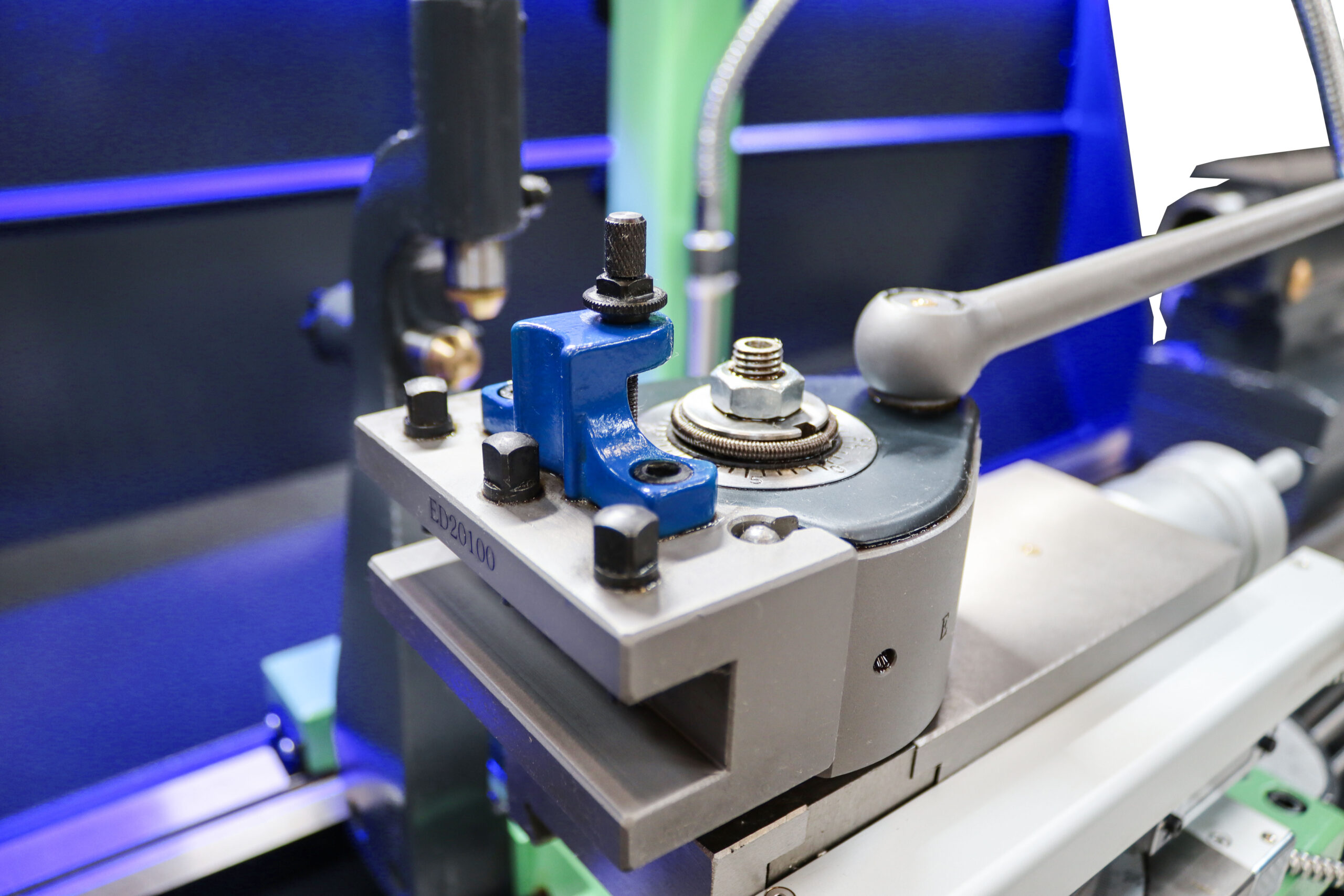

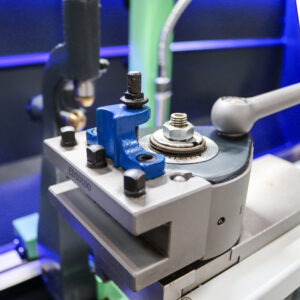

• Quick change tool – 2 pcs.

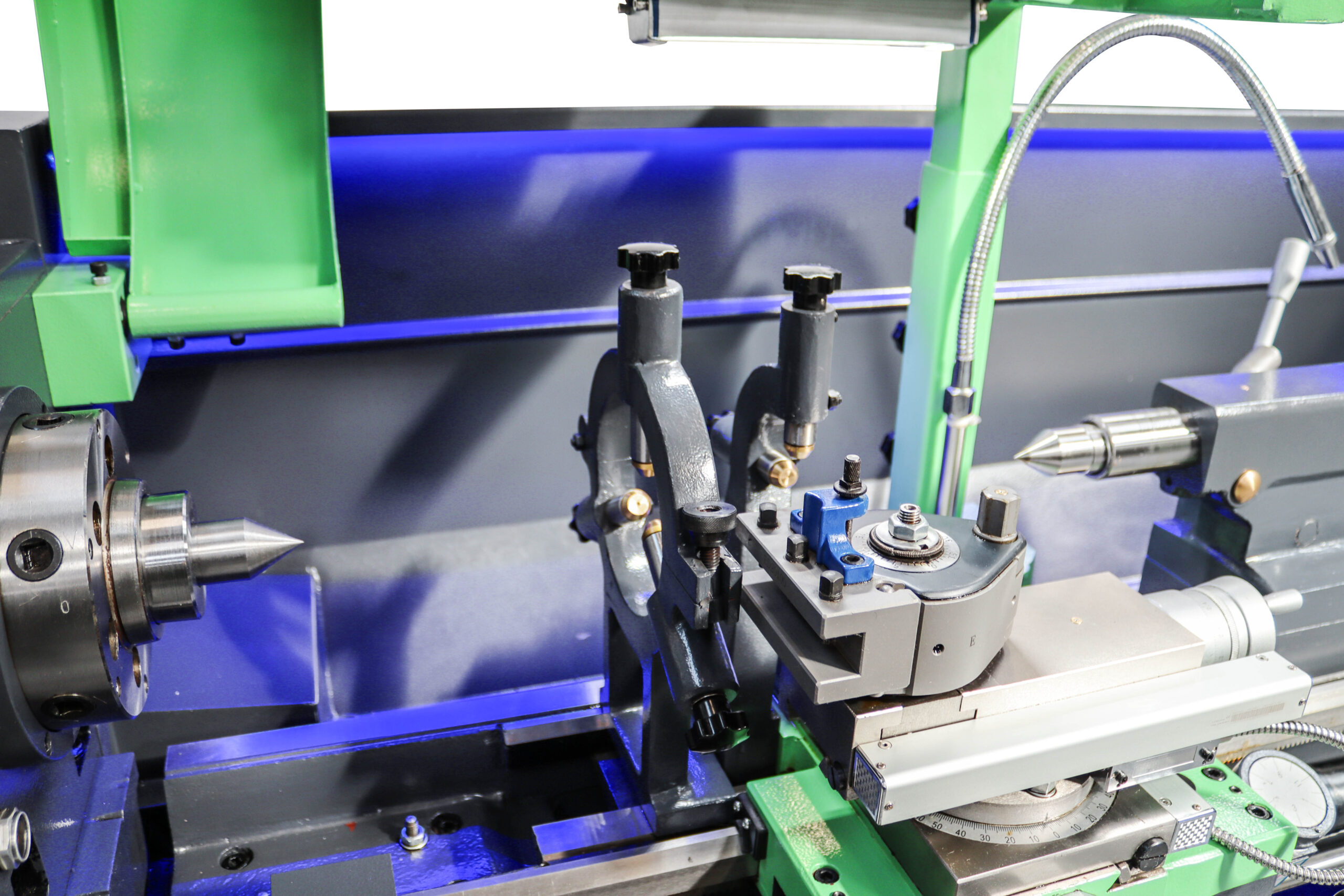

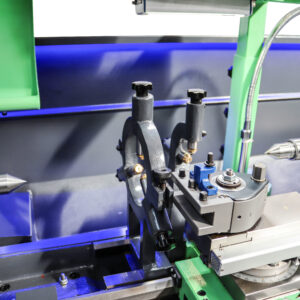

• Fixed and accompanying rest
• Mounting plate

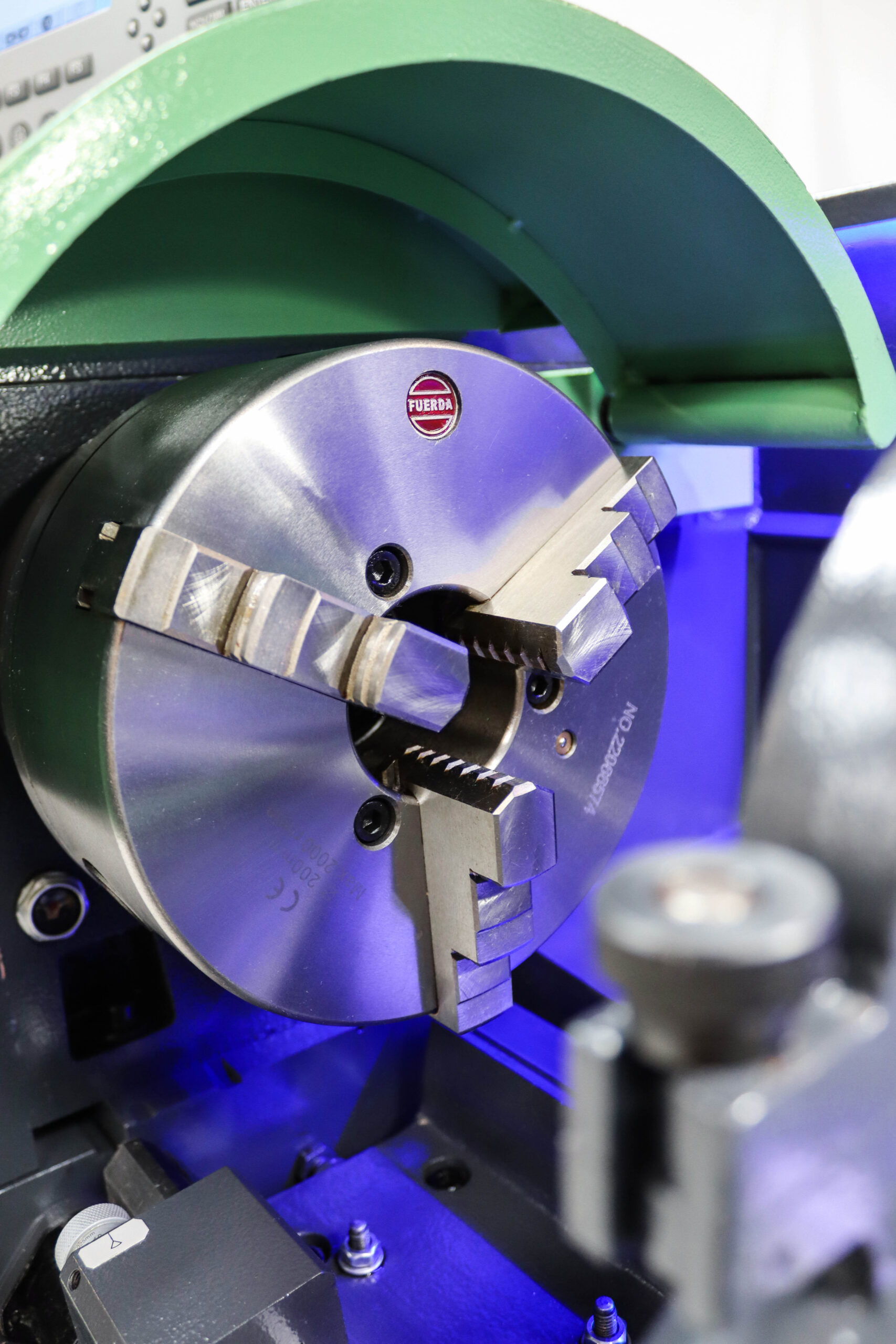

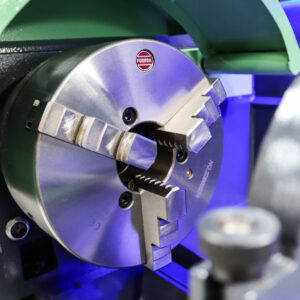

• FUERDA 3-jaw and 4-jaw selfcentering chuck

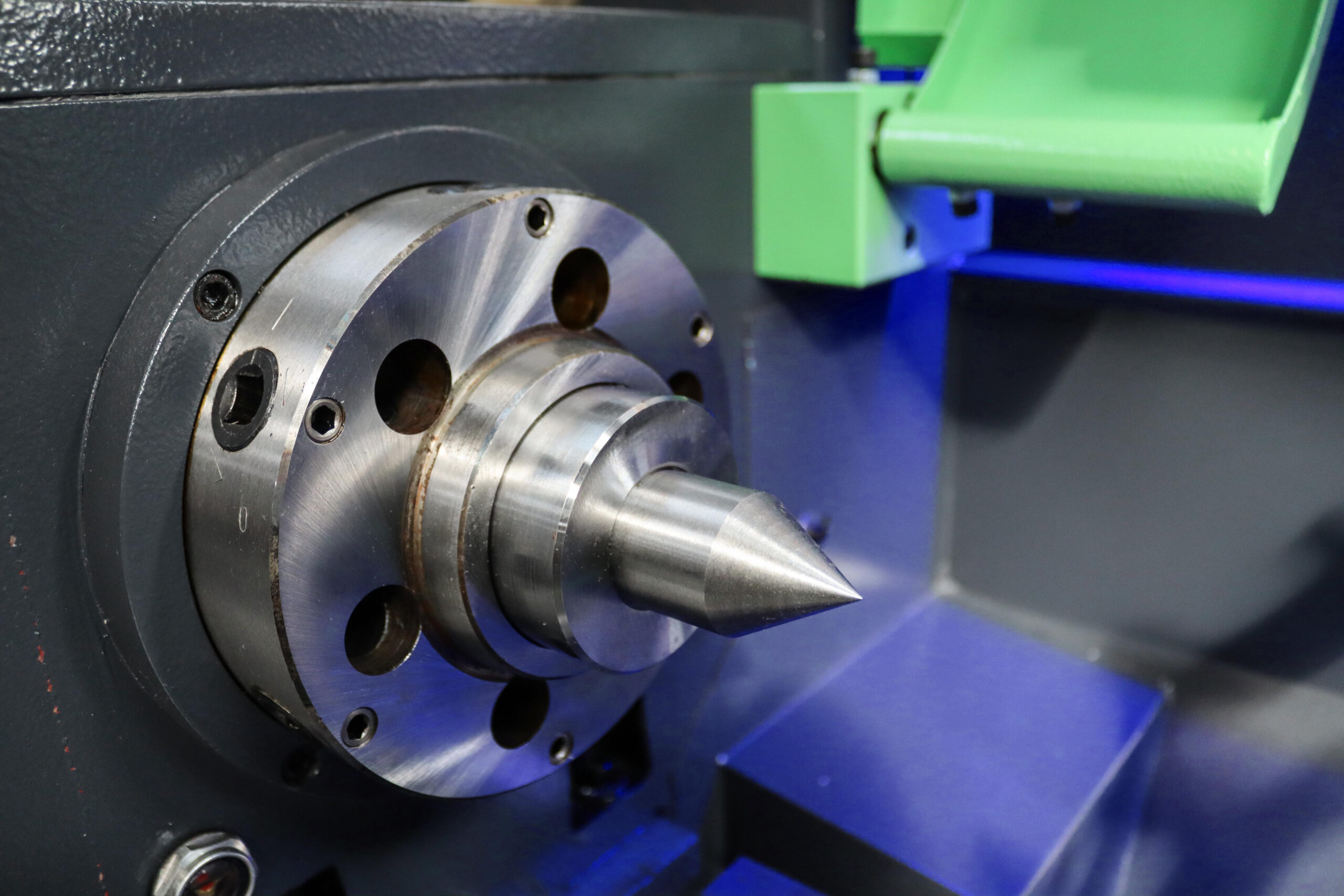

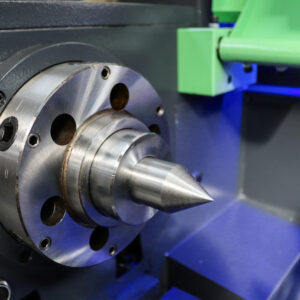

• Turning between 2 tails
• Adjustable sled stop
• Reduction sleeves for tails

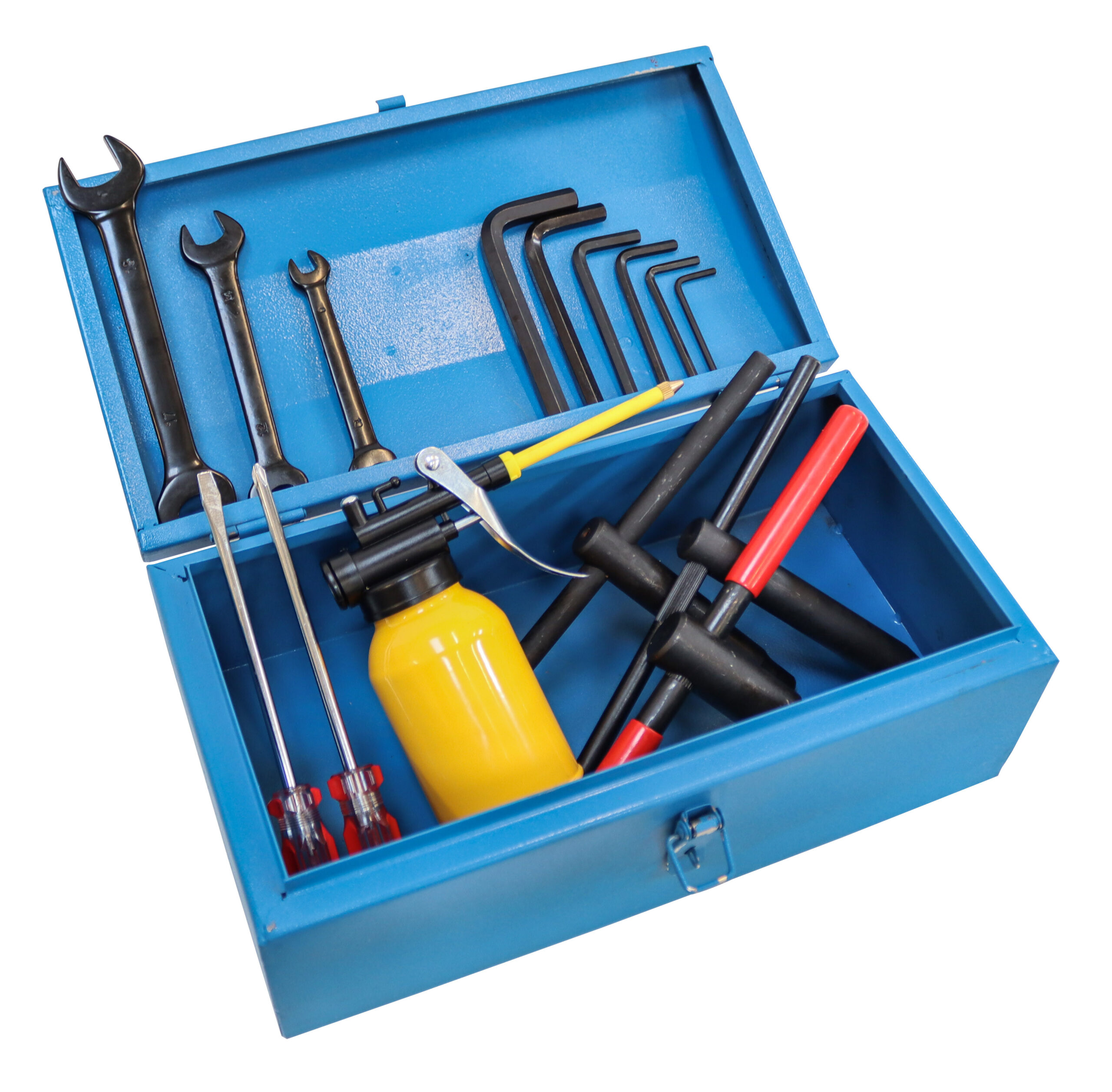

• Toolbox with operation tools, extra jaws and gears

• Product Specifications

  Swing over bed	360mm
  Swing over gap	502mm
  Swing over cross slide	160mm
  Tail diameter	Ø42mm
  Tail height	180mm
  Spindlenose Camlock	D1-5
  Distance between centers	1000mm
  Width of bed	187
  Spindlebore (mm)	52mm
  Taper of spindlenose	MK-6
  Number of spindle speeds	8
  Range of spindle speed	70-2000rpm
  Metric threads	0.4-7.0mm
  Imperial threads	4~56 T.P.I.
  Range of longitudinal leed	0.05~1.39mm
  Type of toolholder	Multi
  Max. travel of compound slide	95mm
  Max. travel of cross slide	160mm
  Max. travel of main slide	1000mm
  Spindle travel	100mm
  Taper in Tailstock Spindle	MK-3
  Voltage	3x400V
  Main motor	1,5kW
  Length (mm)	1930
  Width (mm)	760
  Height (mm)	1600
  Weight	510kg
