Proff Infrareytt myndatól frá Uni-t
Bestu termo mynda tóli hjá Uni-t, vísir sera klárar myndir og hevur sera nógvar hentleikar. Hevur eina thermo upploysing á heili 640×480

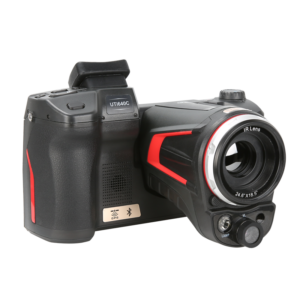

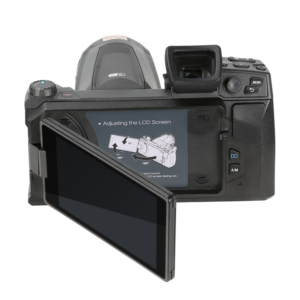

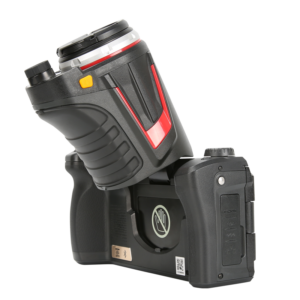

UTi640 is the flagship model for UNI-T brand. Like smart phones, it is specially designed for the users who work in the infrared temperature measurement industry. UTi640C adopts infrared sensors with high sensitivity and resolution, which provides crystal clear infrared images along with higher temperature measurement range and accuracy. Other features include Android operating system, large display screen display, and rotating lens structure.UTi640C can also synchronously collect visible and infrared images, and display key observation positions by PIP and MIF methods. At the same time, through the open Android platform application, it can be extended to a multi-purpose mobile infrared thermal image application platform. Giving users more outstanding visual effects and convenient operation experience.

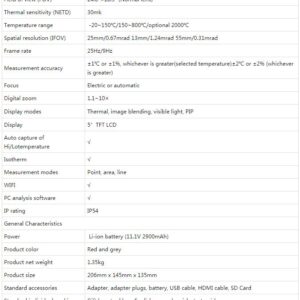

| Technical Data | |
| IR resolution (Pixels) | 640×480 |
| Display | 5” TFT LCD Touch (1280×720) |
| Field of view(FOV) | 24.6°×18.5° |
| Thermal sensitivity(NETD) | ≤30mk |
| Spatial resolution(IFOV) | 0.67mrad |
| Frame rate | ≤25Hz/9Hz |
| Focus | Electric/Automatic |
| Temperature measurement range | -20℃~150℃,150℃~800 (standard lens) 800~2000℃ (optional lens) |
| Accuracy | ±2℃ or ±2% whichever is greater (standard lens) ±1℃ or ±1% whichever is greater (optional lens) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 10 (White hot, Lava, Ironbow, Hot iron, Medical, North pole, Rainbow1, Rainbow2, Black hot, Red) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | 10 Points/5 Lines/5 Rectangles/5 Circles |
| Digital camera resolution | 5MP |
| Digital zoom | 1.0~10x continuous |
| Hi/Lo temperature alarm | Icon,LED flashlight,Buzzer |
| Isotherm | 2 (Above, Below) |
| Software analysis | PC |
| Video recording | √ |
| Voice recording | √ |
| Wi-Fi / Bluetooth | √ |
| GPS | √ |
| Laser pointer | √ |
| General Characteristics | |
| Battery | Detachable Li-ion battery (11.1V 2900mAh) |
| Battery operation time | ≥ 4 hours |
| USB | HDMI,Micro USB |
| IP rating | IP54 |
| Storage | 16G Internal, 16GB SD card |
| Image/Video storage format | Pic: JPEG Video: irgd |
| Languages | ZH, EN, FR, DE, IT, ES, SV, PL, CZ, PT, RU, JA, KO, NL, HU |
| Product net weight | 1350g |
| Product size | 206mm x145mm×135mm |
| Packing Details | |
| Standard accessories | Li-ion battery, Adapter, Adapter plug (5 pcs), 16GB SD Card, Shoulder strap, USB cable, HDMI cable, Ethernet cable, CD-ROM, User Manual, Quick operation manual, Parts list |
| Standard individual packing | Toolbox,Gift box |
| Standard Qty per carton | 1 |
| Standard carton size | 480mm×370mm×235mm |
| Standard carton G.W. | 7.6kg |
549.995,00 kr. v/ MVG
Á fjargoymslu
Avgreiðslutíðin er 2 - 4 vikur.
